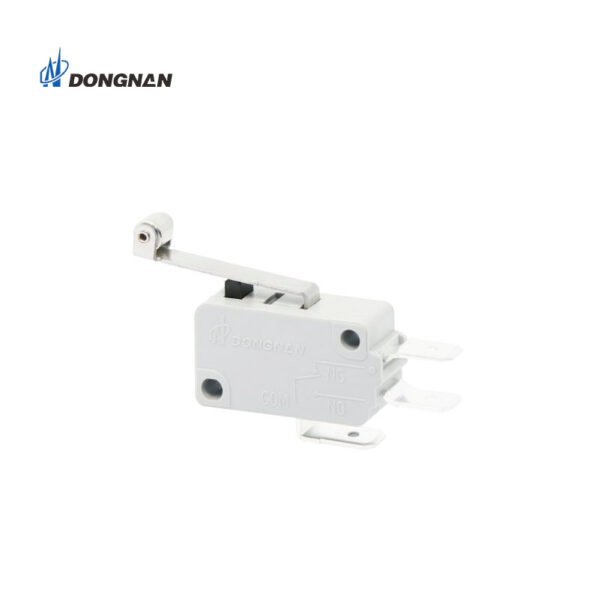

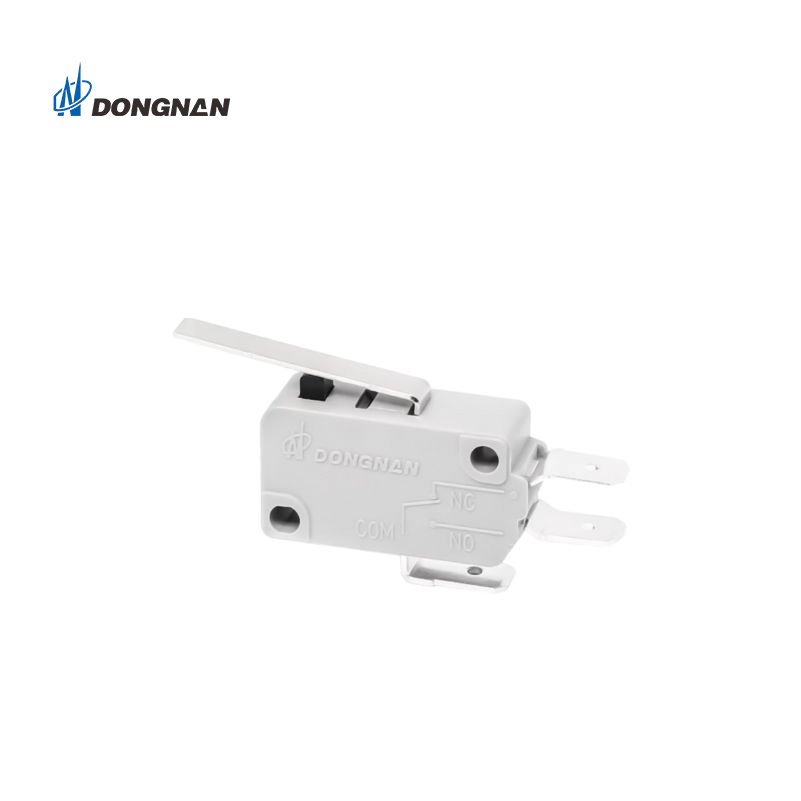

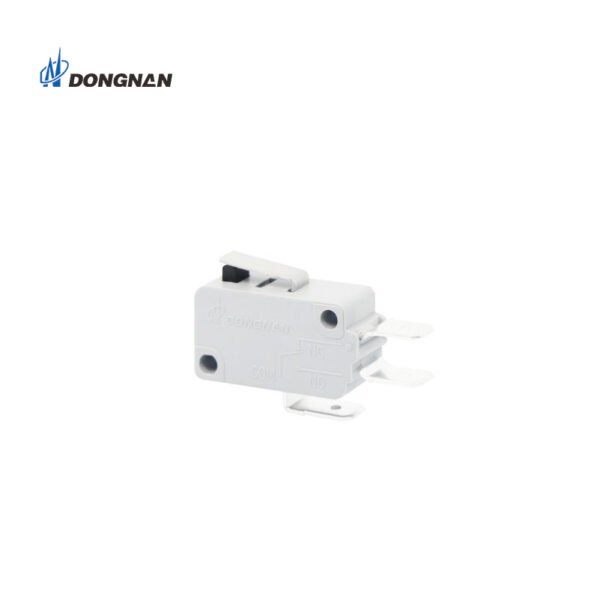

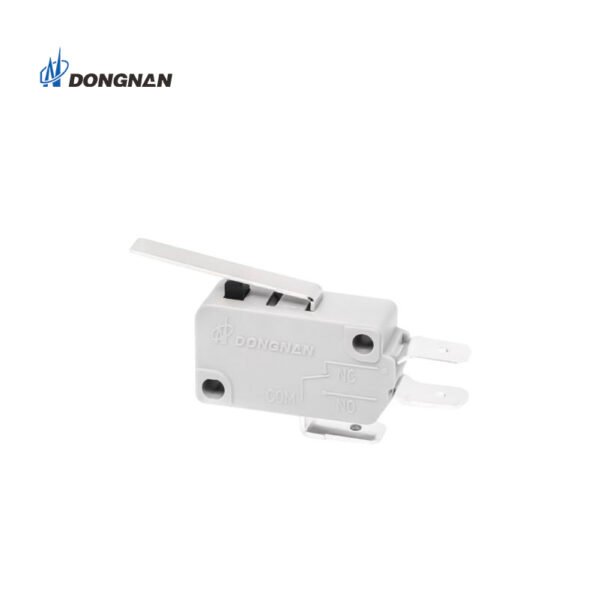

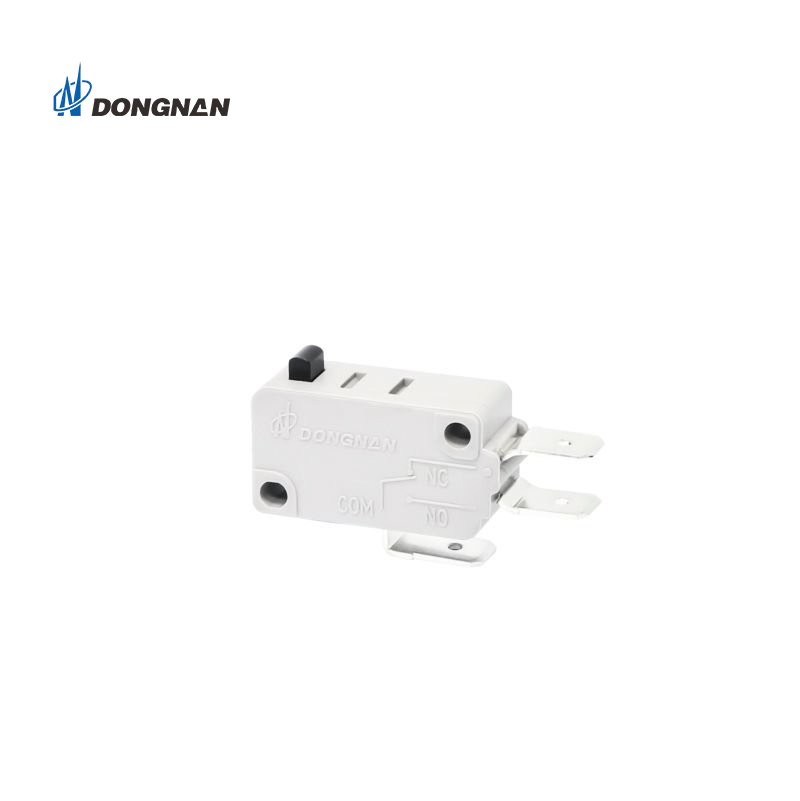

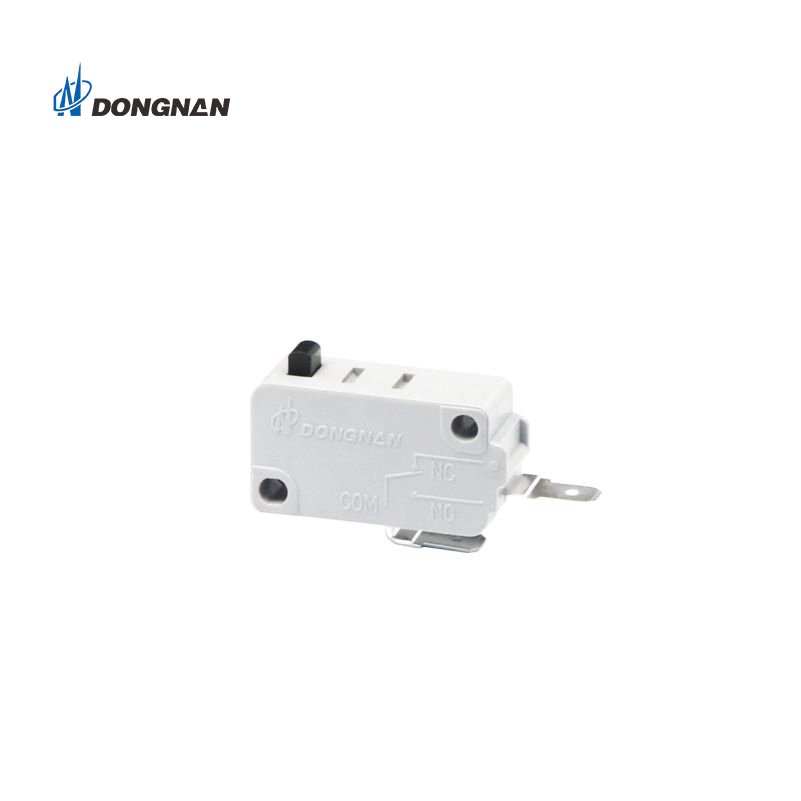

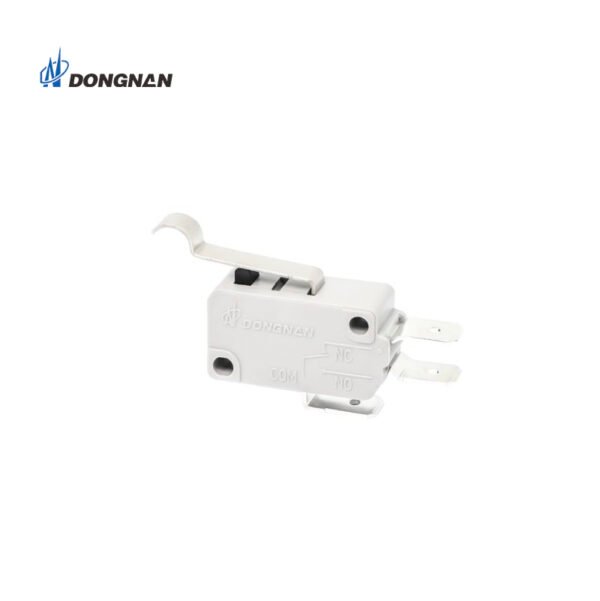

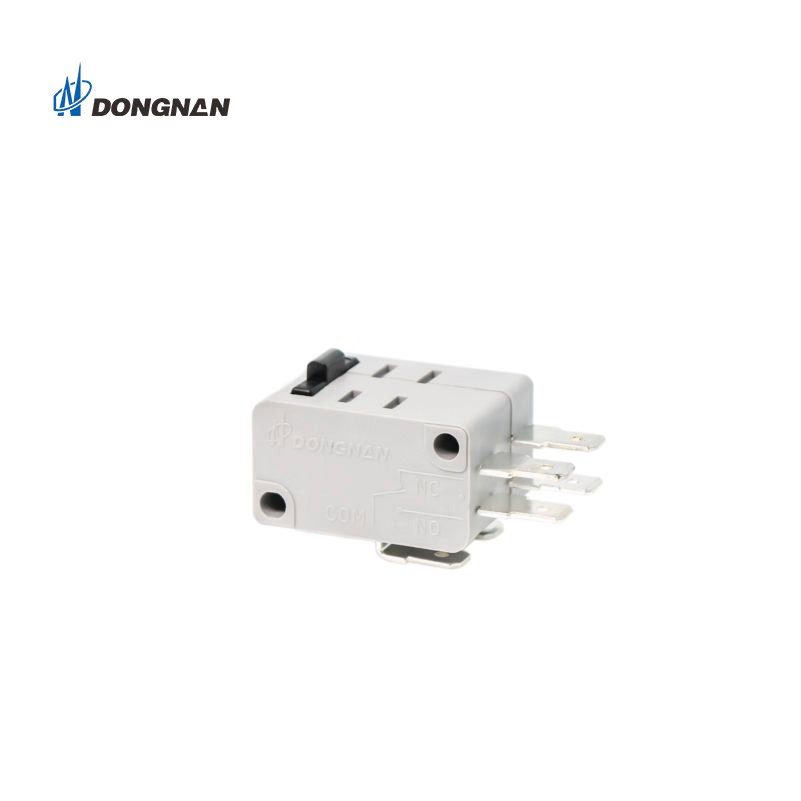

Standard KW3A Microwave Oven Door Switch
Share This Page
Product Features
-DONGNAN switches meet the higheat standards of performance and durability because standard micro swirch is designed with precision and quality in mind. Our basic switches are renowned for having a wide range of operating forces, making them adaptable and appropriate for various requirements.
-To ensure dependable performance in any setting, our KW3A microwave door switch can also function in a broad range of temperature degrees.
-Our basic switches are made of the best material with the most excellent care and attention to detail.
-We place a high value on customization in addition to quality. Every customer has different needs and demands, and we are committed to providing tailored solutions that address those needs. Our team of professionals is always on hand to offer assistance and direction, ensuring that our clients have access to the best products for their particular needs.
Product Parameters
| Item | Value |
| Operating speed | 0.1mm~1m/s (Related with actuator forms) |
| Operating frequency | Mechanical 60 cycles/min; electrical 25 cycles/min |
| Insulation resistance | ≥ 100MΩ(500VDC) |
| Contact resistance | OF>0.75N:≤50mΩ OF≤0.75N:≤100mΩ (initial value) |
| (Test voltage) Between terminals of the same polarity | AC1000V , 50/60Hz , 1min |
| (Test voltage) Between current-carrying metal parts and ground(case), and between each terminal and non-current-carrying metal parts. | AC3750V , 50/60Hz , 1min |
| Vibration resistance | 10~55Hz , 1.5mm Double amplitude |
| Shock resistance | Destruction:OF>0.5N:1000m/s2(approx.100G)max OF≤0.5N:400m/s2(approx.40G)max Malfunction:OF>0.5N:200m/s2(approx.20G)max OF≤0.5N:100m/s2(approx.10G)max |
| Weight | Approx.6.2g(No lever) |
| Life | Mechanical ≥ 2,000,000 cycles Electrical ≥ 50,000 cycles |
| Safety approvals | UL,CUL,VDE,ENEC,SEMKO,DEMKO,NEMKO,FLMKO,
CE,EK,CQC |
