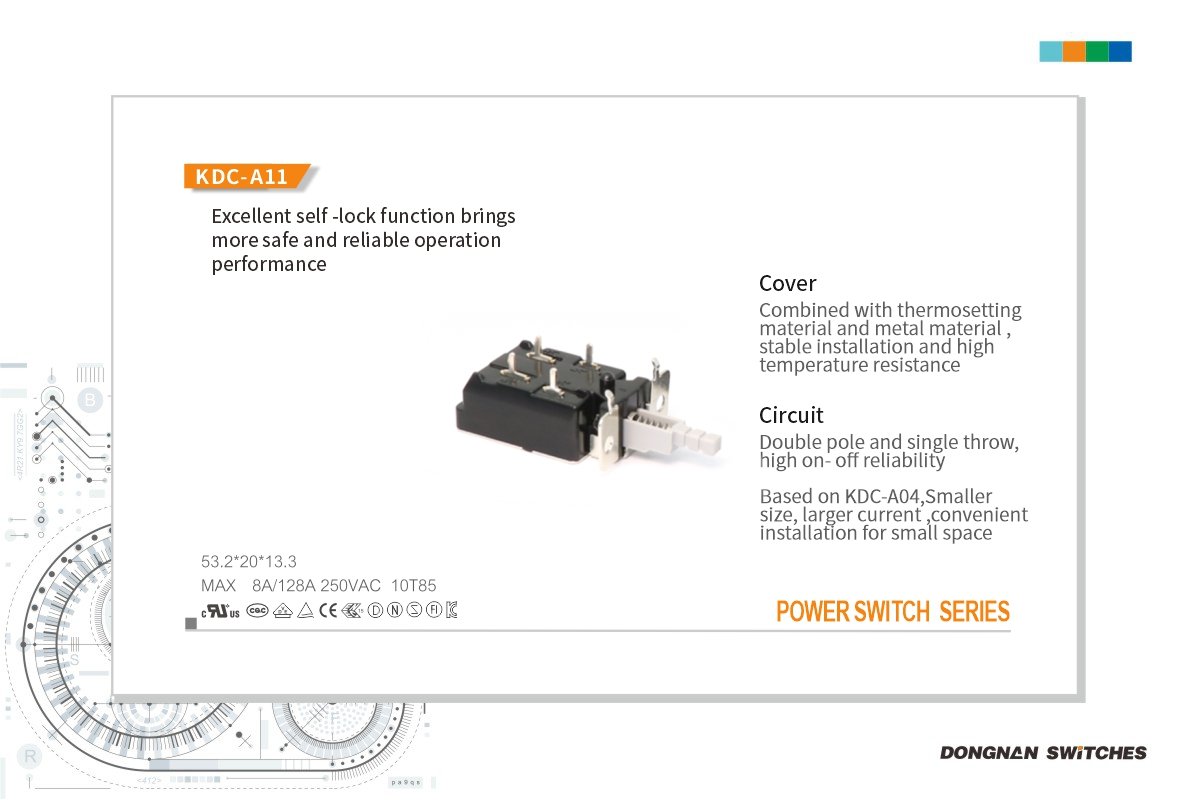

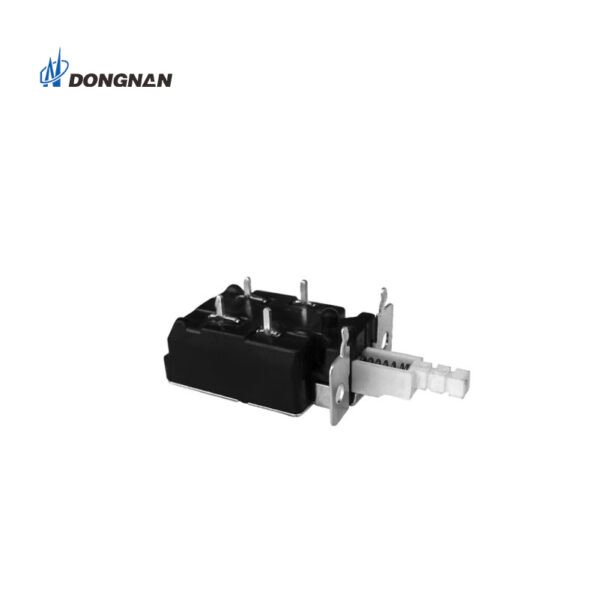

Customized Small Push Button Power Switch For Electronic Equipment
The KDC-A11 power switch is designed with a spring structure that offers unparalleled responsiveness and speed. When pressed, the plunger springs back quickly, ensuring that there is no lag or delay in activating or deactivating the device. This efficient and reliable mechanism guarantees that users can operate.
Share This Page
Product Features
-Quick action.
-Flat type , tight configuration , small volume.
-Endure big current and inrush current.
-Widely used in color TV, audio device , computer and its peripheral equipment, apparatus and instrument , electronic equipment etc.
Product Parameters
| Item | Value |
| Environment temperature | -10~+85°C |
| Relative humidity | 95%,40°C |
| Ratings | TV-8 125VAC , 10GPA125/250VAC , 10A125/250VAC 4A/128A250VAC , 8A/128A250VAC |
| Operating travel/full | 2.5mm/3.5mm |
| Operating force | 3.5N~7.5N |
| Circuit | DPST |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤ 50mΩ |
| (Test voltage) Between each terminals of the same polarity | AC2000V |
| (Test voltage) Between current-carrying metal parts and ground(case), and between each terminal and non-current-carrying metal parts | AC4000V |
| Electrical Life | 10,000 cycles |
| Weight | Approx . 12.1g |
| Safety approvals | UL , CUL , VDE , ENEC , SEMKO , DEMKO , NEMKO , FIMKO ,CE , EK , CQC |
Application
If you need of a power switch that can handle high current loads and inrush currents, look no further than the KDC-A11. This small yet powerful switch is perfect for a wide range of applications, from your favorite home entertainment system to your trusty computer and peripherals.
What sets the KDC-A11 apart is its remarkable durability and versatility. It can withstand constant use and even power surges without breaking down, making it a reliable choice for all your power needs. And with its compact size, you can easily integrate it into any electronic device or precision instrument without taking up too much space.
