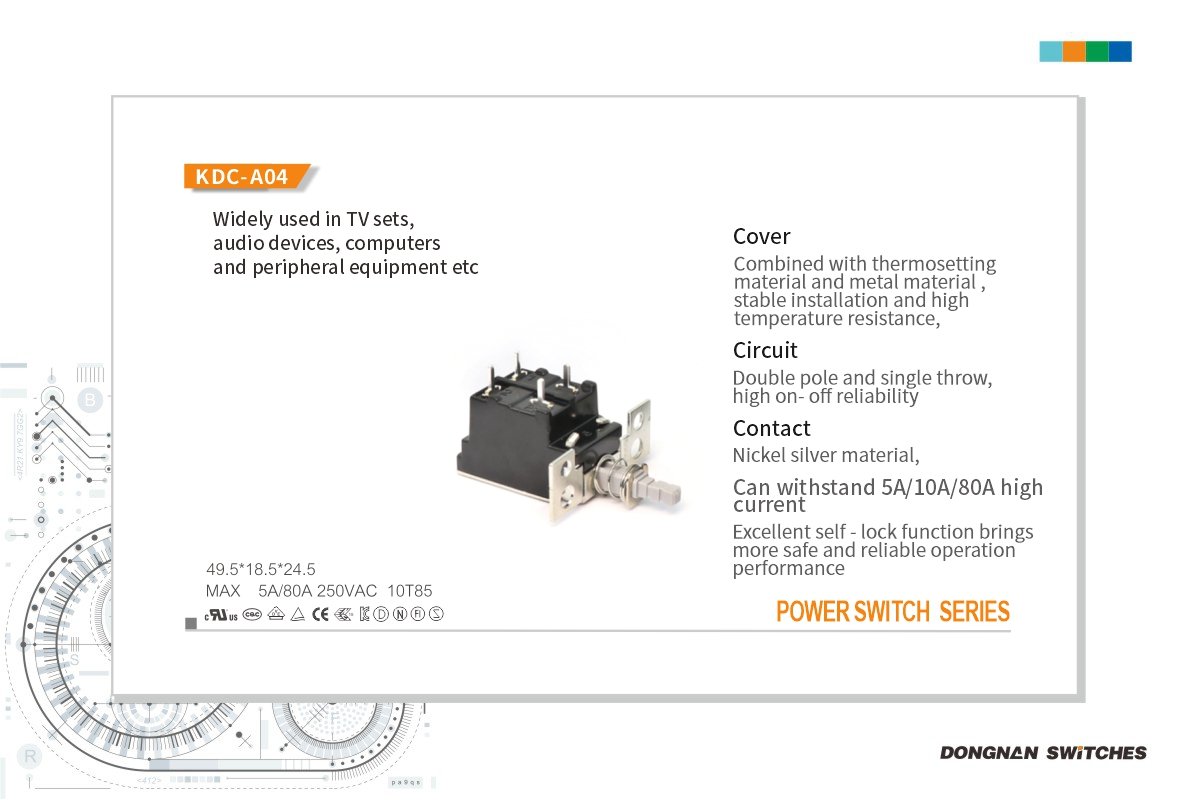

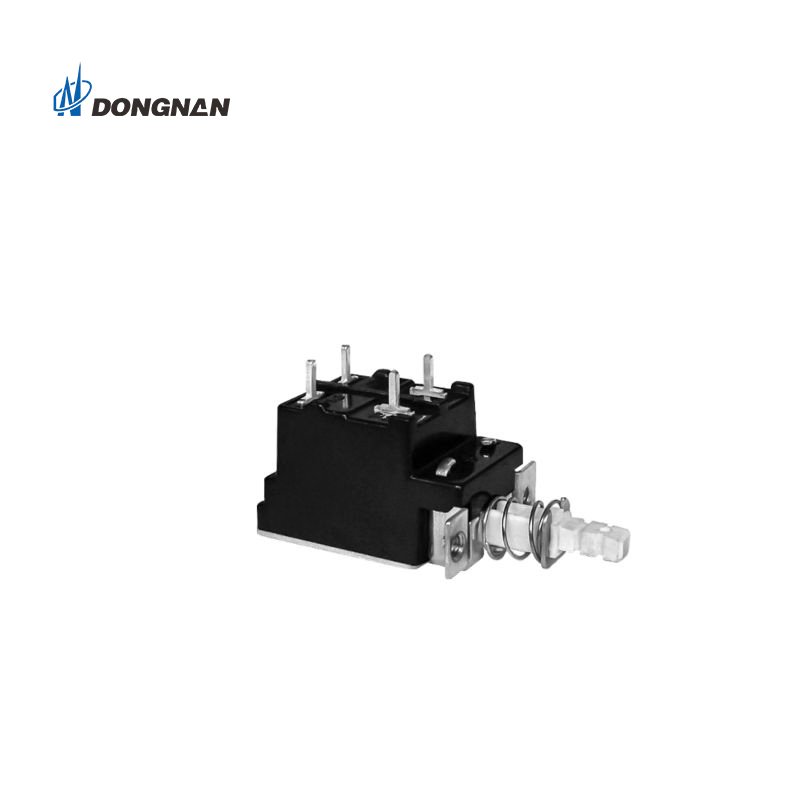

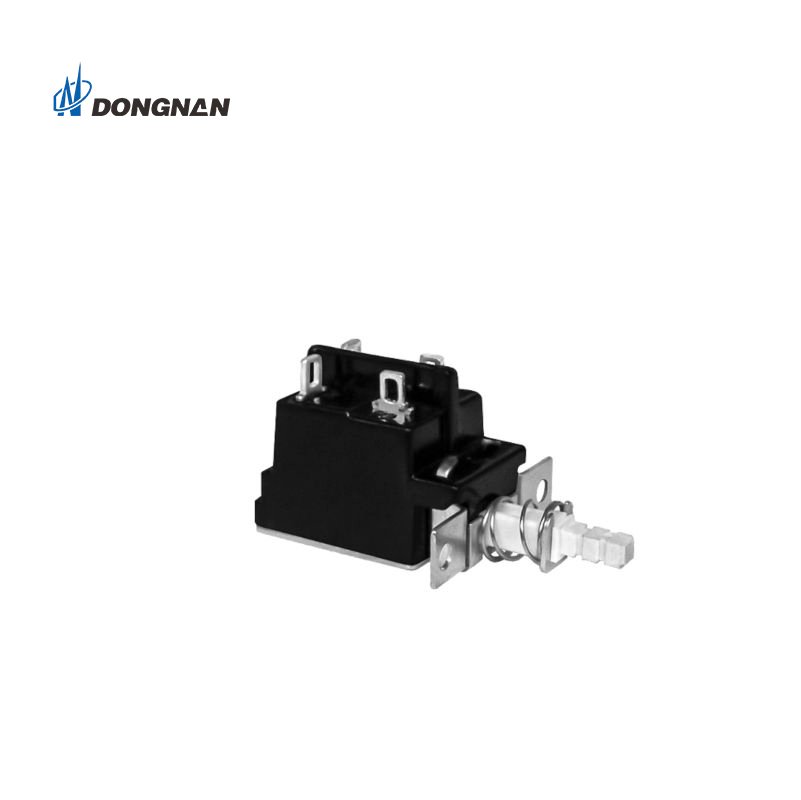

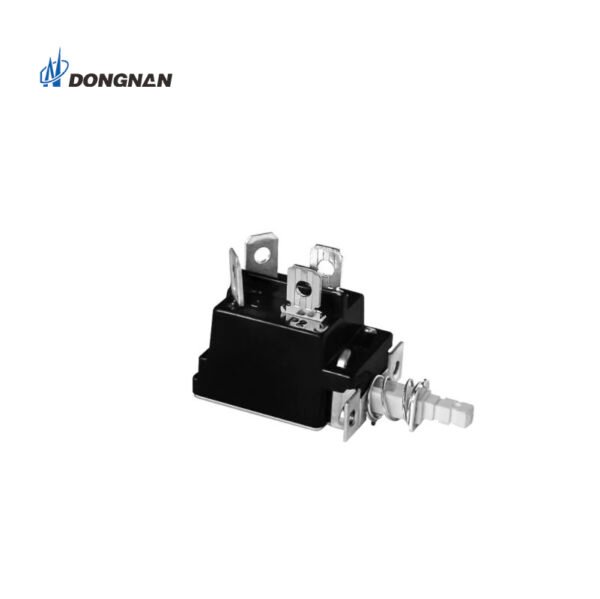

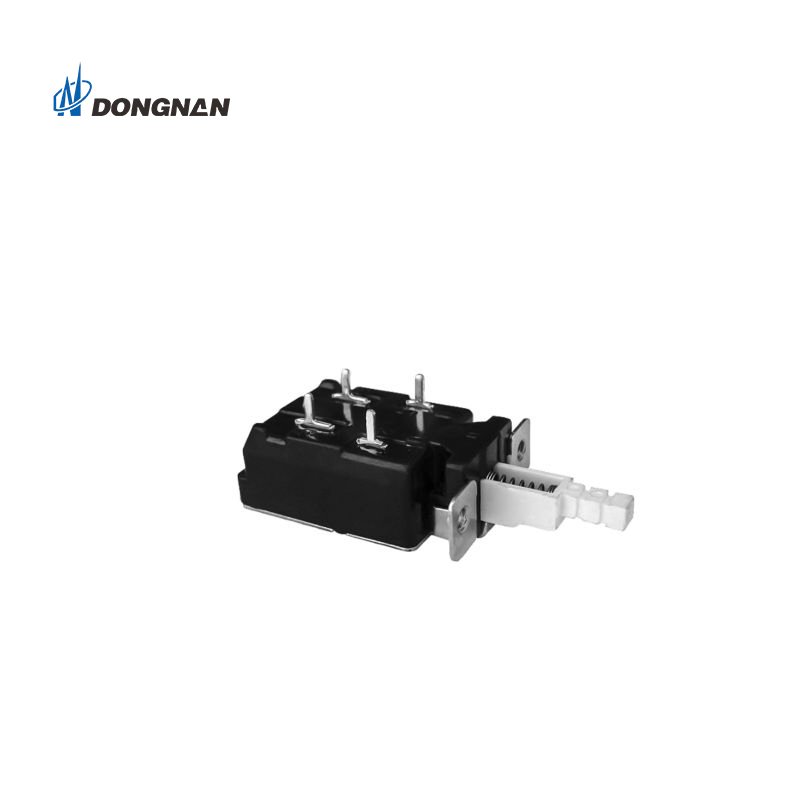

DONGNAN KDC-A04 DPST Micro Power Switch Used in Television
The KDC-A04 power switch is an exceptional piece of equipment. Designed with high-quality materials, this switch can easily withstand high currents and inrush currents. Its unique double-pole, single-throw circuit design makes it an ideal choice for various applications where reliability and safety are critical.
Share This Page
Product Features
-Quick action. Fast-action spring mechanism provides instant response and ensures efficient power control.
-Endure big current and inrush current.
-Long life, high reliability,Durable and reliable
-Widely used in color TV, audio device , computer and its peripheral equipment, apparatus and instrument , electronic equipment etc.
Product Parameters
| Item | Value |
| Environment temperature | -10~+85°C |
| Relative humidity | 95%,40°C |
| Ratings | TV-5 125VAC , 10GPA125/250VAC , 10A125/250VAC 5A/80A250VAC |
| Operating travel/full | 2.5mm/3.5mm |
| Operating force | 2N~8N |
| Circuit | DPST |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤ 50mΩ |
| (Test voltage) Between each terminals of the same polarity | AC2000V |
| (Test voltage) Between current-carrying metal parts and ground(case), and between each terminal and non-current-carrying metal parts | AC4000V |
| Electrical Life | 10,000 cycles |
| Weight | Approx . 16g |
| Sofety approavals | UL , CUL , VDE , ENEC , SEMKO , DEMKO , NEMKO , FIMKO ,CE , EK , CQC |
Application
The KDC-A04 micro power switch is a representative of modern technology. It boasts impressive features such as fast action and high-temperature resistance. Able to withstand big current and inrush current, this power switch is widely used in a range of household and industrial appliances, particularly in color TVs, audio devices, and computers.
One of the standout qualities of the KDC-A04 power switch is its ability to obtain numerous international certificates, which is a testament to the superior quality and design of the product. Furthermore, the switch has an excellent self-lock function, ensuring reliability, durability, and peace of mind.
